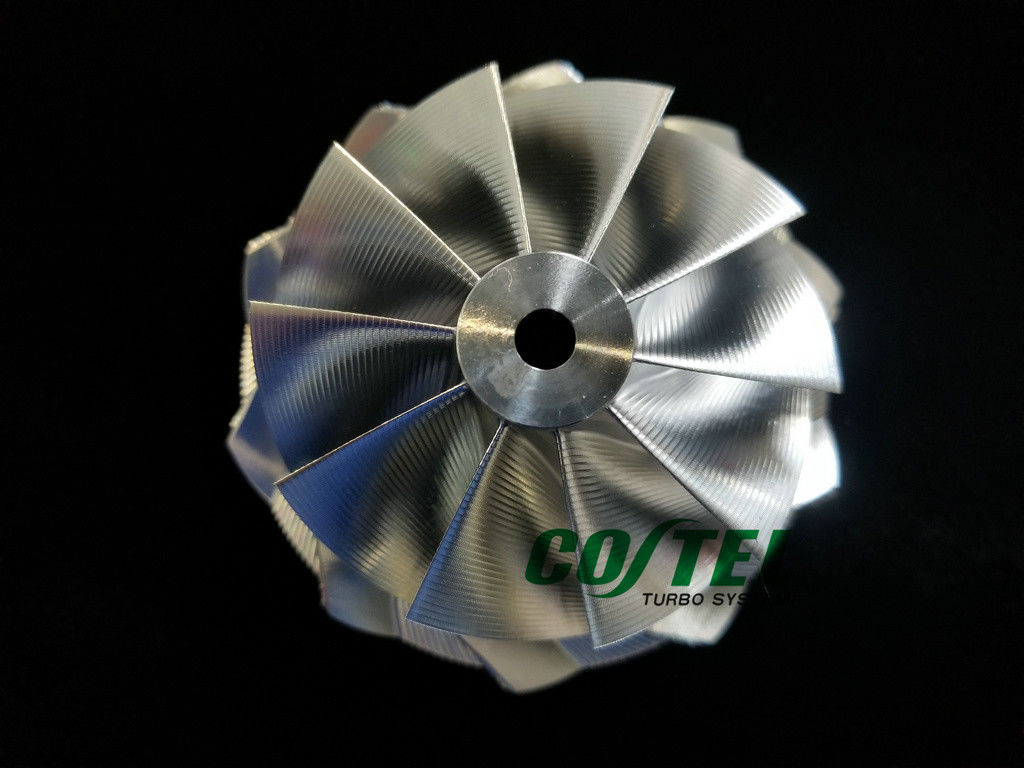

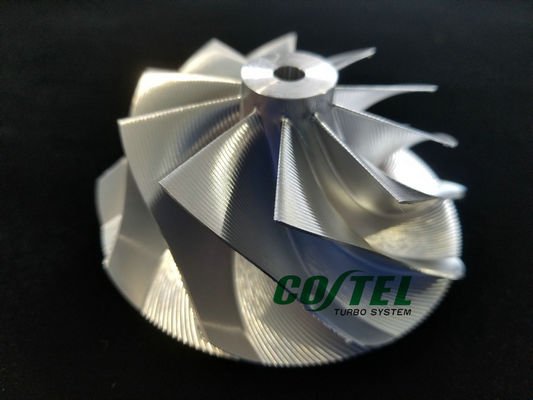

Turbo Billet Compressor Wheel Garrett GTX3582R Gen II 10+0 Point Milling

I'm Online Chat Now

Turbo Billet Compressor Wheel Garrett GTX3582R Gen II 10+0 Point Milling

Turbo Billet Compressor Wheel Garrett GTX3582R Gen II 10+0 Point Milling
Turbo Billet Compressor Wheel Garrett GTX3582R Gen II 10+0 Point Milling Turbo Billet Compressor Wheel Garrett GTX3582R Gen II 10+0 Point Milling

Large Image :  Turbo Billet Compressor Wheel Garrett GTX3582R Gen II 10+0 Point Milling

Product Details:

Place of Origin: China Wuxi
Brand Name: COSTEL
Certification: ISO9001:2008/ TS16949
Model Number: Compressor Wheels

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Neutral Packing
Delivery Time: 3-7 Working Days After Received Payment
Payment Terms: T/T ,western Union, Paypal ,LC
Supply Ability: 10000 Pcs Per Month
Detailed Product Description
Balanced: 100% SCHENCK Xano Materical: Aluminum Alloy
Apply: Repair Turbo Warranty: One Year
High Light:

Turbo Compressor Wheel

,

Turbo Turbine Wheel

Garrett GTX3582R Gen II Turbo Billet

Compressor Wheel / 10+0 Blades / Point Milling

APPLICATION
- Replace wheel number :

- Fit turbo #.851154-5004S, 856801-5067S,

856801-5068S, 856801-5069S, 856801-5070S,

856801-5071S, 856801-5072S, 856801-5079S,

856801-5080S, 856801-5081S

WHEEL SPEC

- Nose Dia : 15.5 mm

- Inducer Dia : 65.7 mm

- Exducer Dia : 82.46 mm

- Extend Tapered Tip Exducerdia : 88.22 mm

- Tip Height : 5.98 mm

- Super Back Height : 2.36 mm

- Overall Height : 37.82 mm

- Bore : 6.35 mm

- Racing or Non-racing : Racing

- STD or customs size : STD size

- Blade : 10+0

- Trailing angle : 45 Degree

- Bore type : through

- Fit OE or custom housing : OE Housing

- Cutback : 6.5 mm

- Rotation : Forward

MATERIAL

- Forged Aluminum

BALANCED

- Balanced By SCHENCK Germany

- Ready to competition









Contact:

Business Phone : 86-18061520139
WHATSAPP : 86-18061520139
Skype : costelturbo@outlook.com
Email : costelturbo@outlook.com



What items  can supply:

A, more than 500 Compressor Wheels available.The exducer diameter of the wheels range from 33mm to 140mm which can be applied to light and heavy duty commercial vehicles.
A, Compressor wheels casting is made from fresh C355;
B, Billet Wheels is made from solid 7075;
C,All wheels are balanced with the Schenck automatic balancing centre incorporating air bearings to achieve lowest residual balance.



What characters  have else:
A, Professional testing equipment to test the material hardness and tensile strength.
B, Surface treatment technology is used (Hot Isostatic Pressing) for the anti-corrosion function.
C, We manufacture special wheels with features such as internal thread technology, Billet Wheels machined by five-axis machine, wheels with double protective structure of titanium and alloy.



Products Coverage:

  • Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
  • KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
  • Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
  • MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
  • Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
  • IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
  • Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
