Turbo Billet Compressor Wheel TF035HM TD04 12T 4D56T 4M40T 37.8/49 11+0

I'm Online Chat Now

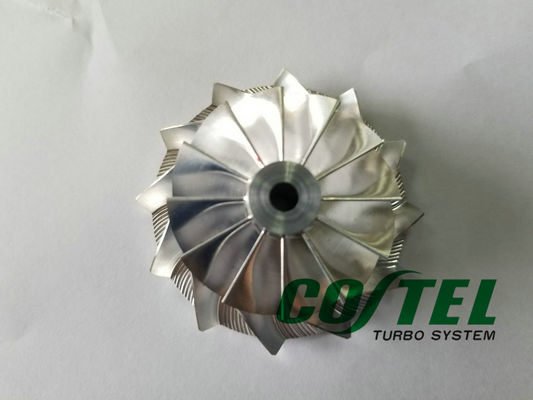

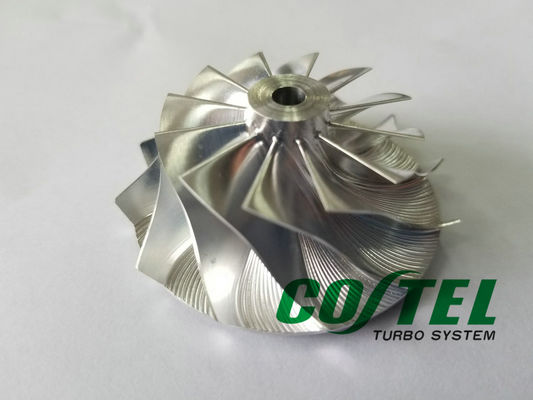

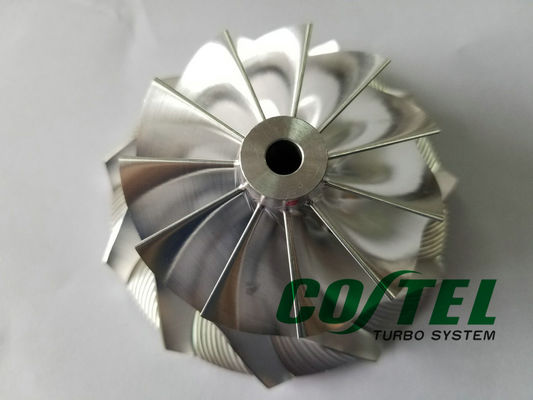

Turbo Billet Compressor Wheel TF035HM TD04 12T 4D56T 4M40T 37.8/49 11+0

Turbo Billet Compressor Wheel TF035HM TD04 12T 4D56T 4M40T 37.8/49 11+0
Turbo Billet Compressor Wheel TF035HM TD04 12T 4D56T 4M40T 37.8/49 11+0 Turbo Billet Compressor Wheel TF035HM TD04 12T 4D56T 4M40T 37.8/49 11+0 Turbo Billet Compressor Wheel TF035HM TD04 12T 4D56T 4M40T 37.8/49 11+0

Large Image :  Turbo Billet Compressor Wheel TF035HM TD04 12T 4D56T 4M40T 37.8/49 11+0

Product Details:

Place of Origin: China Wuxi
Brand Name: COSTEL
Certification: ISO9001:2008/ TS16949
Model Number: Compressor Wheels

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Neutral Packing
Delivery Time: 3-7 Working Days After Received Payment
Payment Terms: T/T ,western Union, Paypal ,LC
Supply Ability: 10000 Pcs Per Month
Detailed Product Description
Balanced: 100% SCHENCK Xano Materical: Aluminum Alloy
Apply: Repair Turbo Warranty: One Year
High Light:

Turbo Compressor Wheel

,

Turbo Turbine Wheel

Turbo Billet Compressor Wheel Mitsubishi TD04-12T / TF035HM-12T (37.80 / 49.00mm) 11+0 Performance Design Fit 4D56T 2.5L / 4M40T 2.8L Turbocharger

Situation

- Brand New

- Balanced By SCHENCK MBRS 110 and Ready to competition

- Maximum boost 5 bar / 70 Psi

Application

- Replaces OE CW P/N : 49135-00016

- Applied to engine/vehicle : Mitsubishi 4D56T Turbocharger

- Suitable for Turbo/Chra or Upgrade for : 9135-02100, 49135-03100, 49135-03200, 49135-03300, 49377-03030, 49377-03040…

Wheel Spec

- Nose Dia: 10.00 mm

- Inducer Dia. : 37.80 mm

- Exducer Dia. : 49.00 mm

- Extend Tapered Tip Exducer Dia. : 53.01 mm

- Tip Height : 4.47 mm

- Super Back Height : 1.90 mm

- Overall Height : 24.00 mm

- Bore Size : 5.00 mm

- Racing or Non-racing : Non-Racing

- STD or customs size : STD size

- Blade : 11+0







Contact:

Business Phone : 86-18061520139
WHATSAPP : 86-18061520139
Skype : costelturbo@outlook.com
Email : costelturbo@outlook.com



What items  can supply:

A, more than 500 Compressor Wheels available.The exducer diameter of the wheels range from 33mm to 140mm which can be applied to light and heavy duty commercial vehicles.
A, Compressor wheels casting is made from fresh C355;
B, Billet Wheels is made from solid 7075;
C,All wheels are balanced with the Schenck automatic balancing centre incorporating air bearings to achieve lowest residual balance.



What characters  have else:
A, Professional testing equipment to test the material hardness and tensile strength.
B, Surface treatment technology is used (Hot Isostatic Pressing) for the anti-corrosion function.
C, We manufacture special wheels with features such as internal thread technology, Billet Wheels machined by five-axis machine, wheels with double protective structure of titanium and alloy.



Products Coverage:

  • Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
  • KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
  • Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
  • MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
  • Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
  • IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
  • Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
