GOLF JETTA PASSAT, Audi A3 GTC1244VZ (S3E) electric turbo charger Wastegate actuator 775517 03L253016T, 03L253016TX

I'm Online Chat Now

GOLF JETTA PASSAT, Audi A3 GTC1244VZ (S3E) electric turbo charger Wastegate actuator 775517 03L253016T, 03L253016TX

China GOLF JETTA PASSAT, Audi A3 GTC1244VZ (S3E) electric turbo charger Wastegate actuator 775517 03L253016T, 03L253016TX supplier
GOLF JETTA PASSAT, Audi A3 GTC1244VZ (S3E) electric turbo charger Wastegate actuator 775517 03L253016T, 03L253016TX supplier GOLF JETTA PASSAT, Audi A3 GTC1244VZ (S3E) electric turbo charger Wastegate actuator 775517 03L253016T, 03L253016TX supplier

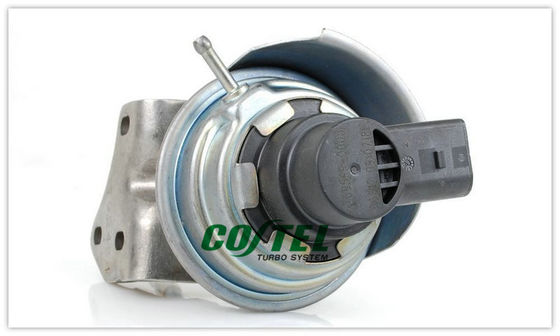

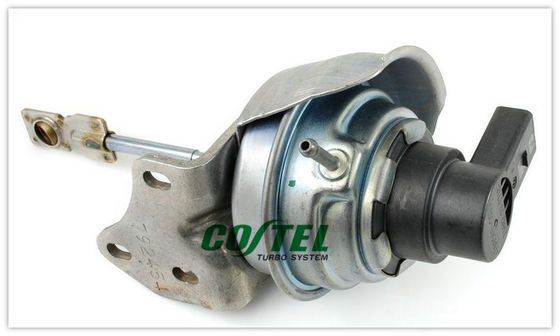

Large Image :  GOLF JETTA PASSAT, Audi A3 GTC1244VZ (S3E) electric turbo charger Wastegate actuator 775517 03L253016T, 03L253016TX

Product Details:

Place of Origin: China wuxi
Brand Name: COSTEL
Certification: ISO9001:2008/ TS16949
Model Number: Electric Turbo parts

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Neutral Packing
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T ,western Union, Paypal ,LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Type:: Electric Turbo Warranty:: One Year
Apply:: Repair Engine Turbo Quality: OE

GOLF JETTA PASSAT, Audi A3 GTC1244VZ (S3E) electric turbo charger Wastegate actuator 775517 03L253016T, 03L253016TX

Part Number 775517-5001S
Previous Version 775517-0001, 775517-1, 775517-0001
OE Number 03L253016T, 03L253016TX, 03L253016TV
Year 2009-13
Description GOLF TOURAN CADDY, JETTA, PASSAT, Audi A3, Altea TDI 105, Leon TDI 105
CHRA N/A
Turbo Model GTC1244VZ (S3E)
Engine CAYA, CAYB, CAYC Euro-5
Engine Manufacturer VW
Displacement 1.6L, 1598 ccm, 4 Cylinders
Power 77/105 HP
RPM Max 4000
Fuel Diesel


Turbine Housing AR VNT3.5
Gasket exhaust manifold 210985
Gasket (turbine outlet) 210878
Gasket (oil inlet and outlet) 211122
Gasket actuator EGR 211123
Intercooler 8ML376746-721
NOTE Integrated Manifold, Actuator Pneumatic
Manufacturer Honeywell-Garrett



Applications

2009- Audi A3 1.6 TDI (8P/PA) Engine CAYC Euro-5

2009-13 Skoda Octavia II 1.6 TDI Engine CAYC Euro-5

2009- Volkswagen Golf VI 1.6 TDI Engine CAYC Euro-5

2009- Volkswagen Jetta V 1.6 TDI Engine CAYC Euro-5

2009- Volkswagen Passat B6 1.6 TDI Engine CAYC Euro-5

2009- Volkswagen Polo V 1.6 TDI Engine CAYC Euro-5



GOLF JETTA PASSAT, Audi A3 GTC1244VZ (S3E) electric turbo charger Wastegate actuator 775517 03L253016T, 03L253016TXGOLF JETTA PASSAT, Audi A3 GTC1244VZ (S3E) electric turbo charger Wastegate actuator 775517 03L253016T, 03L253016TX



Contact:

Email/Skype:costelturbo@outlook.com



What items can supply:

A, Electrical Actuators Parts, including Motors, Worm Gear, Locating Lug, Gearboxes etc.
B, Permeability test 100%.
C, Spring liner data test 100%.

D,TOYOTA Electrical Actuators

G-001,G-02,G-004,G-009,G-13,G-17,G-20,G-22,G-24,G-25,G-26,G-27,G31,G-031,G-33,G-34,G-38,
G-41,G-42,G-43,G-45,G47,G-047P,G-48,G-49,G-52,G-53,G59,G-62,G-64,G-66,G-67,G-70,G-72,G-74,
G-77,G-79,G-82,G88,G-88,G-90,G-107,G-108,G-124,G-125,G-138,G149,G-167,G-185,,G-186,G187,G-203,
G-206,G-208,G-219,G-221,G-222,G271,G-276,G-277
