15mm Tip Height Mitusbishi TD08 Turbine Shaft Wheel K418 material

I'm Online Chat Now

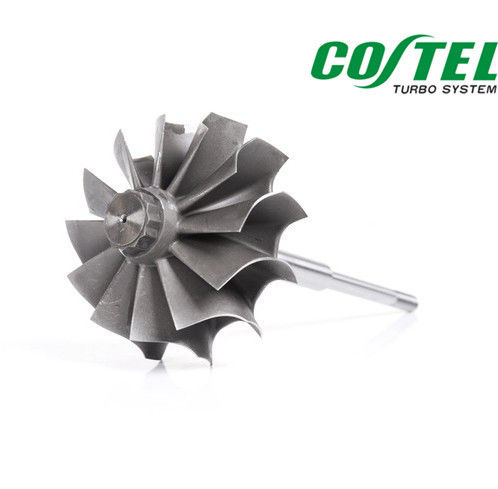

15mm Tip Height Mitusbishi TD08 Turbine Shaft Wheel K418 material

China 15mm Tip Height Mitusbishi TD08 Turbine Shaft Wheel K418 material supplier

Large Image :  15mm Tip Height Mitusbishi TD08 Turbine Shaft Wheel K418 material

Product Details:

Place of Origin: China Wuxi
Brand Name: COSTEL
Certification: ISO9001:2008/ TS16949
Model Number: Turbine Shaft Wheel

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Neutral Packing
Delivery Time: 3-7 Working Days After Received Payment
Payment Terms: T/T ,western Union, Paypal ,LC
Supply Ability: 10000 Pcs Per Month
Contact Now
Detailed Product Description
Balanced: Shaft Wheels Balanced Material: K418
Apply: Repair Turbo Warranty: One Year

Mitusbishi TD08 Turbine Shaft Wheels



TITLE Green Source TD08 Turbine Shaft
APPLICATION Green Source Turbine shaft for Mitusbishi TD08
MATERIAL Inconel
DIAMETER (A/B) 79 mm / 90 mm
TIP HEIGHT (C) 15 mm
JOURNAL BEARING (D) 12
COMP. WHEEL BORE (E) 7.94 mm
BLADES 12
CONDITION Brand New

  Highly balanced & made with the highest quality materials


Contact:

Email/Skype:costelturbo@outlook.com



What items can supply:
A, Jrone have more than 400 Turbine Shaft and Wheels available.The exducer diameter of the wheels range from 28.5mm to 132mm which can be applied to passenger cars, light and heavy duty commercial vehicles.
B, The replacement Shaft and Wheels cover many popular originally manufactured turbos.
C, The Turbine wheel casting is made from fresh high nickel (>73%) alloy Inconel 713, the equivalent being K418.
D, Material hardness and tensile strength is tested by professional testing equipment.
All wheels are balanced with Schenck automatic balancing centre with air bearings to achieve lowest residual balance.
E, Long life, high efficiency iridium and aluminum coated turbine shaft and wheels.



Products Coverage:

  • Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
  • KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
  • Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
  • MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
  • Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
  • IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
  • Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
