Audi TT / S3 K04-022 Turbo 53049880022 turbo Actuator valve wastegate

I'm Online Chat Now

Audi TT / S3 K04-022 Turbo 53049880022 turbo Actuator valve wastegate

China Audi TT / S3 K04-022 Turbo 53049880022 turbo Actuator valve wastegate supplier

Large Image :  Audi TT / S3 K04-022 Turbo 53049880022 turbo Actuator valve wastegate

Product Details:

Place of Origin: China Wuxi
Brand Name: COSTEL
Certification: ISO9001:2008/ TS16949
Model Number: Turbo Actuators

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Neutral Packing
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T ,western Union, Paypal ,LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Type: Full Kit Warranty: One Year
Quality: OEM Quality Apply: Repair Engine Turbo

Audi TT / S3 K04-022 Turbo 53049880022 turbo Actuator valve wastegate

Actuator 58251104082
Settings Waste gate (pressure) 0.50 bar
Settings Waste gate (lift shaft) 5.50 mm
Gasket (turbine inlet) 210646 (INOX Steel)
Gasket (turbine outlet) 210676 (INOX Steel)
Gasket (oil outlet) 210317 (Paper)
Manufacturer Borg Warner - 3K - Schwitzer
Condition Rebuilt

Interchangeable with 53049880020



Applications

1999-12 Audi S3 1.8 T with AMK Engine

1999-12 Audi TT 1.8 T (8N) with AMK APX Engine

2002-03 Seat Leon 1.8 T Cupra R with AMK Engine



Pictures:

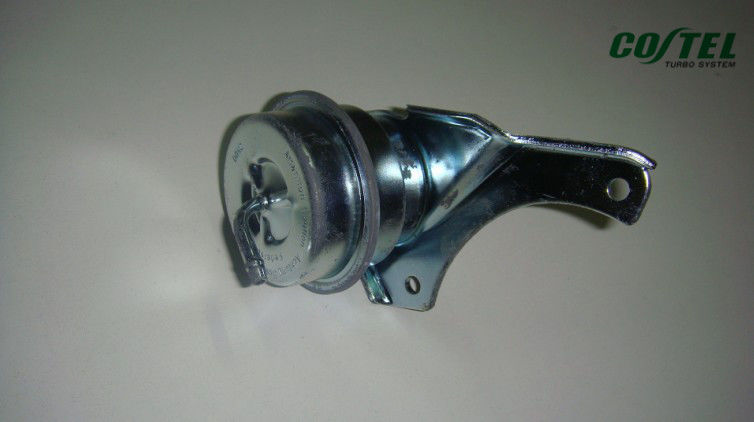

Audi TT / S3 K04-022 Turbo 53049880022 turbo Actuator valve wastegate



Contact:

Email/Skype:costelturbo@outlook.com



What items can supply:
A, currently supplies over 220 different actuators, which includes Pressure acutators, Pneumatic actuators, Vacuum actuators with position sensors, and so on.
B, The replacement actuators cover many popular originally manufactured turbos.
C, Electrical Actuators Parts, including Motors, Worm Gear, Locating Lug, Gearboxes etc.
D, Permeability test 100%.
E, Spring liner data test 100%.



Products coverage:

  • Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
  • KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
  • Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
  • MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
  • Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
  • IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
  • Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
